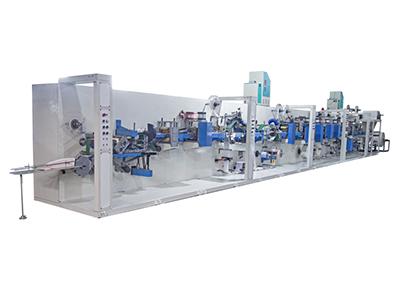

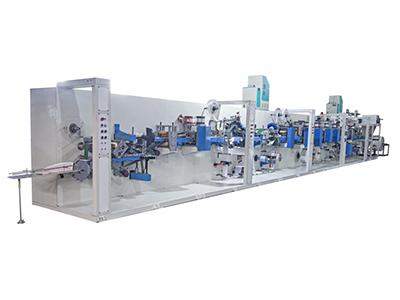

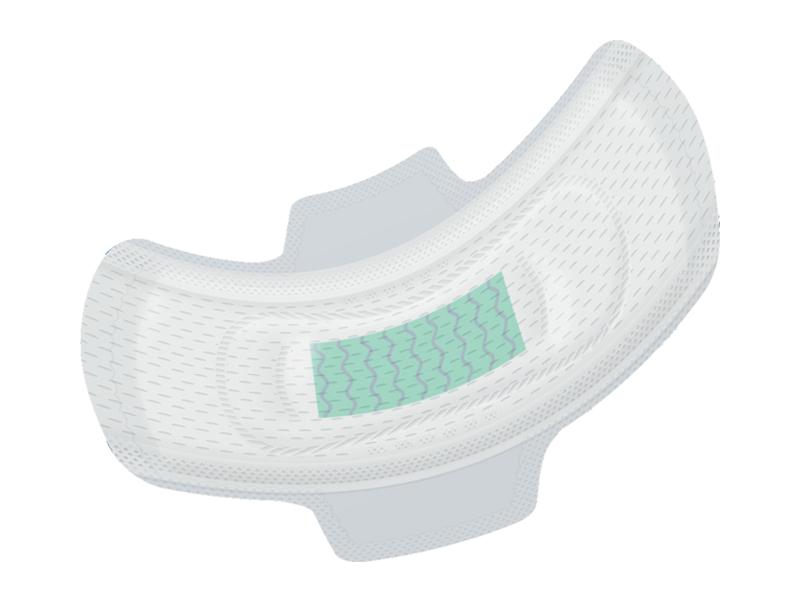

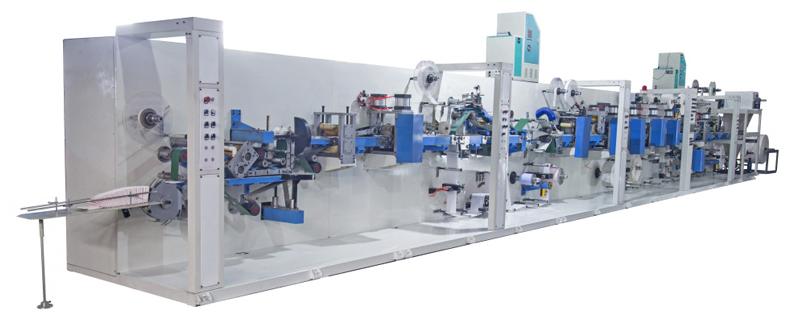

ZZ-WSJ-500 sanitary napkins production line is designed to make ultra thin and cotton core easy-wrap sanitary pads, with a capacity of about 500pcs per minute.

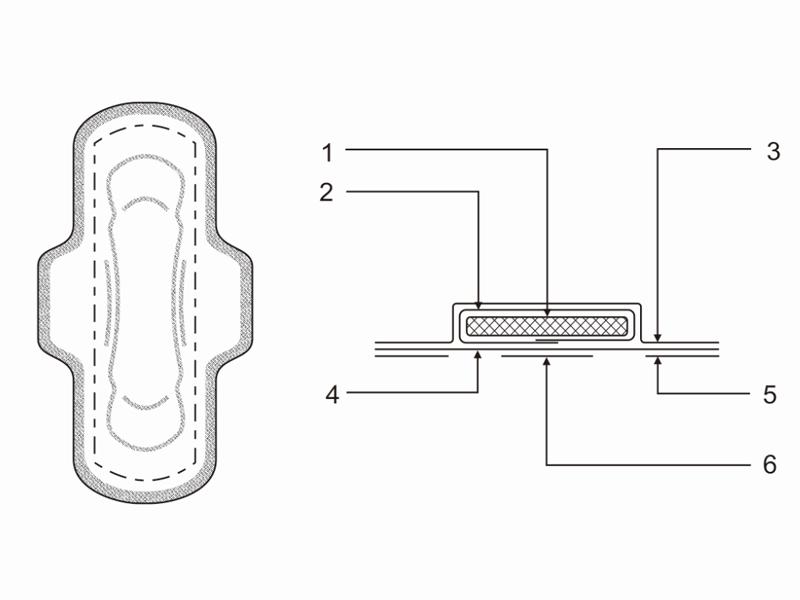

• Cotton core
• Tissue
• Nonwovens
• Polyethylene(PE) Film
• Release paper applied on wings
• Release paper applied on backsheet

• Super absorbent polymer is applied quantitatively.
• Cotton core drum forming unit.
• The machine is equipped with a high efficiency pulverizer.
• PLC system with touch screen control provides high control precision and easy of use.
• Optional servo control system or inverter control system
• Transmission system consists of sealed gearbox, universal coupling and synchronous belt, of stable transmission and good synchronism.
• Nonwoven, cast film or soft tissue paper application group with automatic splicer and automatic unwinder, with constant tension control.
• Automatic detection for broken material and lacking of material, and alarms automatically.
• Automatic rejection system for changing and splicing materials.
• Molding and positioning process is equipped with an electronic differential to conduct synchronous regulation without closing down.

• Production speed: 500 pcs/min
• Qualification rate: ≥98%
• Power supply: three-phase 380V, 50HZ
• Overall size: 19000mm×2300mm×2300mm
• Total power: 100kW (glue application system and air compressor excluded)
• Weight: 20T
• Operator: 2-3

Note: Above data is for reference only and depends on your customized demands.
