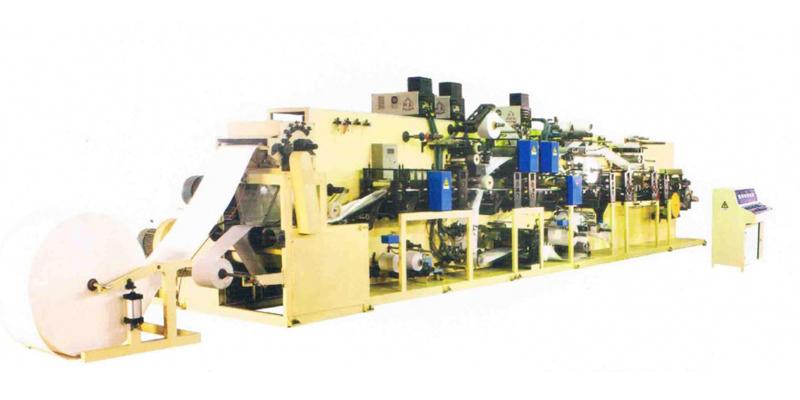

ZZ-YNK-200 baby diaper production line is ideal to produce baby diapers, including structures like elastic waist band, frontal tape, side tape, standing leak guide, leg cuffs, etc. Large, medium and small sized baby diapers can be produced by this production line, with a production speed of 150-200 pcs/min.

• Mixing dosing of SAP
• The machine equips a high efficiency pulverizer.
• Finished products are tri-folded and stacked in a line.
• Transmission system consists of sealed gearbox, universal coupling and synchronous belt, of stable transmission and good synchronism.
• Molding and positioning process is equipped with an electronic differential to conduct synchronous regulation without closing down.

• Production speed: 150-200pcs/min
• qualification rate: ≥96%
• overall size: 15000mm×2500mm×2700mm
• Weight: 17.5T
• Power supply: three-phase 380V, 50HZ
• Total power: 64kW (glue applicator and air compressor excluded)
• Operators: 2-3

Note: Above data is for reference only and depends on your customized demands.
