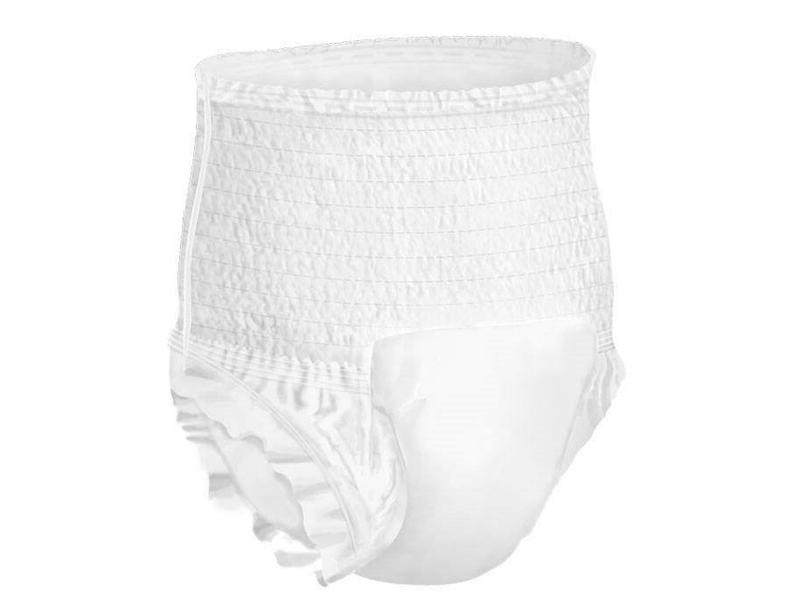

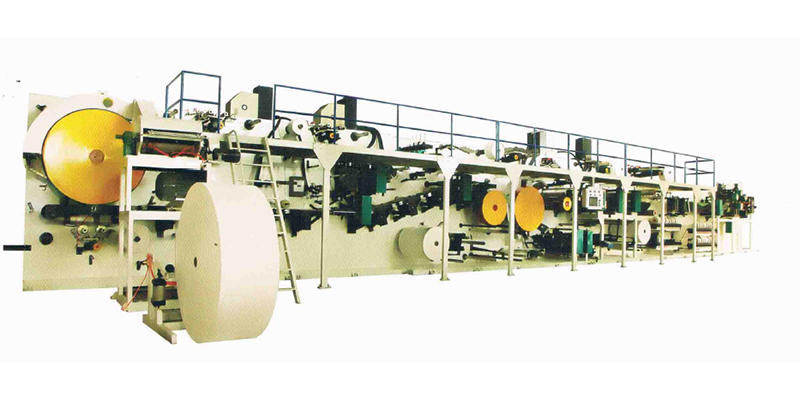

RL-CLLK-100 adult pull-ups production line is specially designed for producing adult pull-ups composed by standing leak guide, leg cuffs and other components. Both large and small size pull-ups can be produced, with an output of 100m/min.

• The center unwinder features automatic splicing and tension control.
• Automatic unwinder deals with various raw materials like hydrophobic nonwoven, hydrophilic nonwoven, PE film, etc.
• Mixing dosing of SAP
• A high efficiency pulverizer is installed.
• Cotton core drum forming unit.
• Finished products are tri-folded and stacked.
• Transmission system combines sealed gearbox, universal coupling and synchronous belt.
• Gearbox applies helic bevel gear, offering stable transmission and good synchronism.
• PLC + touch screen enables easy operation.
• Inverter control system features high precision control.
• Molding and positioning process is equipped with an electronic differential to conduct synchronous regulation without closing down.

• Production speed: 100m/min
• Product size: to customers’ demands
• Qualification rate: ≥96%
• Equipment size: 32000mm×7000mm×2600mm
• Power supply: three-phase 380V, 50HZ
• Weight: about 30T
• Power: ≈180 kW (glue applicator and air compressor excluded)
• Operators: 2-3

Note: Above data is for reference only and depends on your customized demands.
