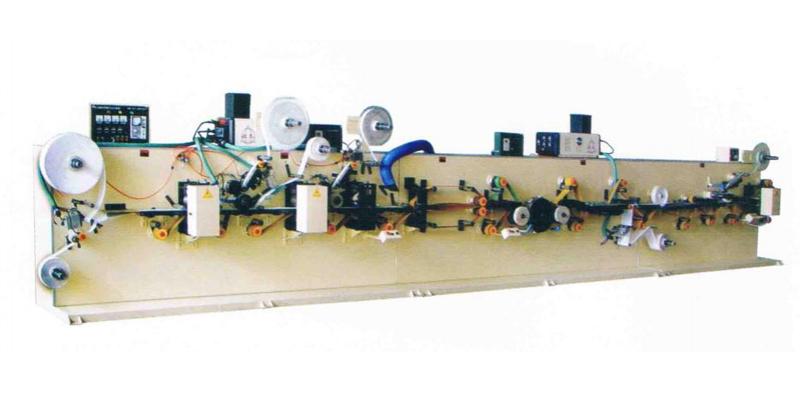

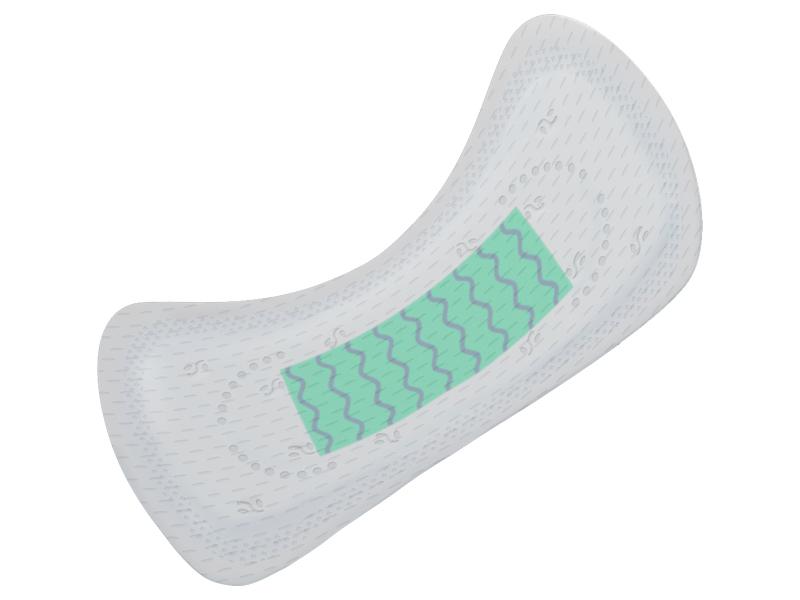

ZZ-HD-300 daily panty liner production line can be used to make different types of pantyliners like compound core, 3-layer core or with a medicated layer. Pantyliner length can be customized following your demands, generally available in 160mm and 180mm. This production line offers a production speed of 200-300pcs/min.

• Daily panty liner is cut and pressed vertically by the main machine.
• Transmission system consists of sealed gearbox, universal coupling and synchronous belt, of stable transmission and good synchronism.
• Molding and positioning process is equipped with an electronic differential, allowing for synchronous regulation without closing down.

• Production speed: 200-300 pcs/min
• Pantyliner size: 160mm, 180mm
• Overall size: 12000mm×2300mm×2000mm or as your need
• Power supply: three-phase 380V, 50HZ
• Weight: about 15T
• Total power: ≈30kW (glue application system and air compressor excluded)
• Operator: 2-3

Note: Above data is for reference only and depends on your customized demands.
